35mm Concealed Hinge Boring Tool
Description
The model 50-U is both usable on a drill press for shop use or on a standard 3⁄8" electric drill motor for hand held applications.
The tool can be mounted on a drill press and removed at any time for field situations and then easily reinstalled on the drill press.
The tool features automatic boring depth stop, a non-skid base to protect a work piece, centerline positioning for additional hinge boring, and can drill for leg leveler systems.
The tool can use 20mm, 35mm, and 40mm x 57mm bits not included, and is designed for custom size cabinetry as well as for use with the 32mm system making it usable on all brands of hardware.
Specifications
- Base and Bridge: Machined P.V.C.
- Bearings: Bronze
- Shaft: Machined Steel
- Fence: Aluminum
- Collars: Machined Steel
- Handles: Plastic
- Finish: None
- Color: Grey
- Size: .75"W x 5"D x 6.5"H - assembled
Downloadable Instructions
Having trouble viewing?
 Download
Free Adobe Reader
|
|
|
Details
Description
Catalog#: ED50-U, Suggested Retail Price: $108.95 |
|
ED-DPK-1.5 drill press kit For ED50-U
|
Optional Related Products
Accessory: Drill Press Kit
Catalog#: ED-DPK-1.5 drill press kit, Suggested Retail Price: $42.95
Downloadable Instructions
Having trouble viewing?
Download
Free Adobe Reader
|

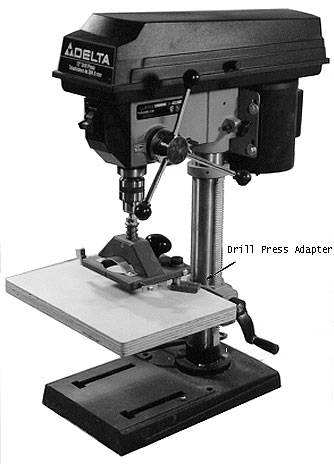

Click to see larger picture of
Euro-Drill mounted to a drill press with
Optional Drill Press Kit
|
|
|
35 x 57mm Bit For ED50-U
|
Catalog#:
35x57mm bit, Suggested Retail Price: $30.75
|
