32mm Line Boring Jig
Description

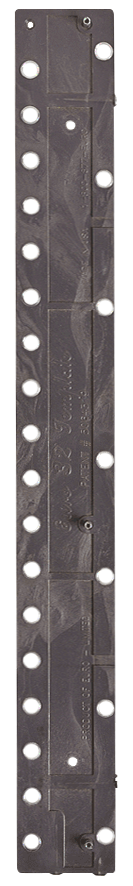

The Euro-32 Template is the next generation technology for the process
of drilling for adjustable shelf holes or line boring construction. Designed
to be used with the Euro-Bit self-centering drilling tool, this eliminates
the need for hardened drill guide bushings and dramatically increases the
efficiency of drilling for adjustable hardware holes. The tool features slide
pins for 35mm inset positioning as well as adjustable stops for insets greater
than 35mm's. Can be used on assembled cabinets as well as on cabinet components,
steel drill guide for long life, adjustment screws for hole elevation and can
be used to drill for dowels for cabinet construction.
Specifications
- Template: Plastic with Steel Bushings
- Color: Gray Finish
- Mat Size: 0.25" Thick x 2.81" W x 23.875" L
Downloadable Instructions
Having trouble viewing?
 Download
Free Adobe Reader |
|
Details
Catalog#: E32T, Suggested Retail Price: $37.95
|
Used with the Euro-Bit
self centering drilling tool. |
Optional Related Products REQUIRED to use tool
Designed to be used with the Euro-Bit self centering drilling tool.
|
